6L Silent Type Diesel Power Generator Set 200KVA , Water Cooled Generator

Brand Name : SHX

Model Number : SCS200

Certification : ISO9001:2015, CE, TUV, BV

Place of Origin : Foshan, China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 80 Sets per month

Delivery Time : 15 working days

Packaging Details : Standard export packing

Product Name : 200KVA Silent Generator

Color : Gray

Cylinder No. : 6L

Aspiration : Turbocharged

Voltage : 415/240V

Engine brand : Cummins

Alternator brand : Stamford

Control Panel : Deep Sea 6020

Contact Now

Product Description

6L Silent Type Diesel Generator 200KVA , Water Cooled Generator

Product Description:

1. Prime power 200KVA, standby power 220KVA.
2. Powered by Cummins engine.
3. Original Stamford alternator.
4. Delixi air breaker.
5. Electric start with batteries.
6. Base integrated fuel tank.
7. Deep sea controller.

8. ATS is built-in.

Genset Specifications:

Genset model	SCS200
Genset rated power	160KW/200KVA
Rated voltage	240/415V (adjustable)
Rated current	278 Amp
Frequency	50 Hz
Power factor	0.8 Lagging
Connecting type	3 phase 4 wire
Cooling system	Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm	3150×1150×1750
Gross weight (kg)	2200

Engine Specifications:

Diesel Engine
Brand	DCEC CUMMINS
Model	6CTA8.3-G2
Engine structure	6 cylinders vertical in line,4 stroke, turbocharged
Rotating speed	1500 RPM
Engine cooling method	Water-cooled
Speed governing system	Electronic speed governor
Starting method	By 24V batteries
Engine filter system	Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L)	8.3
Bore×Stroke(mm)	114×135
Compression ratio	17.3: 1
100% Load fuel consumption (litre/h)	≤39.5
Lube capacity(L)	23.8

Alternator Specifications:

Alternator
Brand	Stamford
Model	UCI274H
Excite type	Brushless self-excited AVR regulation
Connecting type	3 phase 4 pole
Steady frequency change	0.50%
No load voltage	≥95%-105%
Steady voltage	≤±1%
Insulation class	Class H
Protection grade	IP23

Introduction of Diesel Generator:

A Diesel Generator (DG) is a combination of diesel engine with electrical generator (often called an alternator) to generate electricity. DG sets are used in places that have no connection to power grid, and as emergency power-supply if the grid fails. In other words, DG sets remain the number one choice for standby and emergency power systems. DG sets are selected based on the electrical load they are intended to supply.

OEM Service:

Unique design and manufacture of generator according to customers requirement.
Customer logo printing or painting on the genset.
Installation and Operation manual neutral or headings can be design according to customer requirement.
Full warranty cover to support the customers.

Guarantee For SHX Series Generators:

Guarantee Period: One year or 1000hours whichever comes first.
During the guarantee period, the spare-parts will be sent through your shipping agency in China.
Spare-parts can also be sent thought FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.

6L Silent Type Diesel Power Generator Set 200KVA , Water Cooled Generator

Product Tags:

standby power generator

low rpm power generator

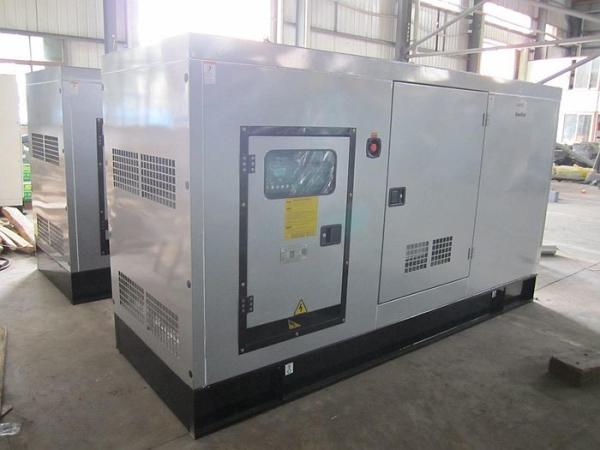

6L Silent Type Diesel Power Generator Set 200KVA , Water Cooled Generator Images
