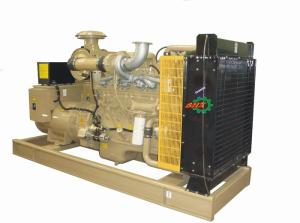

300KVA Commercial Diesel Generators With Automatic Control System
Specification of generator set
1. Powered by Cummins engine.
2. With Engga alternator.
3. With CHINT MCCB and electronic components.
4. Electric start by 24V batteries.
5. Deepsea / Smartgen controller.
6. ATS is for option.
Engine
- Heavy duty diesel engine
- Four stroke, water cooled
- 12V and 24V starter and charge alternator
- Cooling radiator and fan
- Maintenance free battery including cable
- Flexible fuel connection hoses and manual oil sump drain valve
- Exhaust silencer
Alternator
- Brushless, single bearing
- Insulation class: H
- Protection class: IP21
- Self-exciting and AVR regulation
Control System
- Control, monitor and protect the Generator Set
- High water temperature
- Low oil pressure
- Over and under speed
- Over current
- Under/Over generator voltage
- Start and stop failure
- Low and high battery voltage
- Charge fail
- Emergency stop
Basic components of Generator Set:
1. Diesel engine with 3 filters.
2. AC synchronous generator.
3. Water tank & radiator assembly.
4. The cooling fan and fan guard.
5. Heavy duty steel channel base frame.
6. Genset control system.
7. Genset circuit breaker.
8. 24V DC starting motor and charging alternator.
9. Vibration-damping supports between engine/alternator and the base frame.
10. Base fuel tank for 8 hours operation (silent type).
Operating conditions of generator set:
1. Altitude: ≤1500 m.
2. Ambient Temperature: -15℃~50℃.
3. Relative air humidity: ≤90%.
4. The site can't has electric conduction dust and corrosive gas that destroies metal insulation.
5. The site can't has explosion danger.
