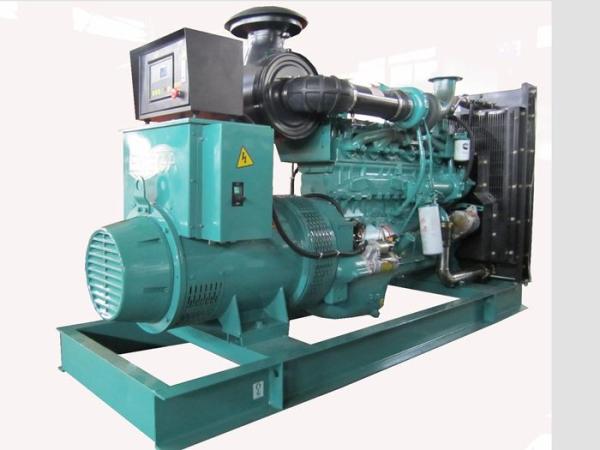

400 / 230V 50Hz 250KVA Cummins Generator With Cummins Engine
Product Description
Cummins Diesel Generator Set is a set of complete equipment for electrical power supply. Cummins engines, high quality alternators and advanced full automatically control system are produced through strict test, which together provides reliable power no matter as standby, prime or continuous use.
Specification of generator set
Prime power: 250KVA / 200KW
Rated voltage: 400V / 230V
Rated frequency: 50Hz
Rated speed: 1500RPM
Engine
Brand: Cummins
Model: NT855-GA
Speed governor electronic
Cooling system forced water cooling cycle
Alternator Feature
Alternator brand: Engga
Model: EG280-200N
Number of phase: 3P
Number of bearing: 1
Protection grade: IP21
Exciter type brushless, self exciter, AVR automatic voltage regulation, 100% copper winding wire
Instruction: class H
Brushless self excited, single bearing, 4 poles
Self-exciting and self-regulating
Control System
*Control, monitor and protect the Generator Set
*High water temperature
*Low oil pressure
*Over and under speed
*Over current
*Under/Over generator voltage
*Start and stop failure
*Low and high battery voltage
*Charge fail
Features:
- High fuel efficiency: Fewer fuel consumption at leading level than other competitive products.
- The turbocharger with waste gated design: Optimizes operation across the torque curve resulting in excellent low-end torque.
- Compacted yet durable and dependable engine: Cummins engines contain up to 40% fewer parts than competitive engines in its class. This results in a better power-to-weight ration, a less chance of failure and lower repair cost.
- Advanced design and manufacturing: Make the engine delivers superior performance and lower cost than competitive engines.
- Excellent cold start performance: Optional assistant cold starter with improved 6.6KW starter and intake air heater.
- Excellent performance and advantage: Adopt advanced design to achieve higher horsepower and lower weight.
