15-100KVA Silent Diesel Generator Soundproof 3 Phase 50Hz / 60Hz Standby Generator

Brand Name : SHX

Model Number : SCS15

Certification : ISO9001:2015, CE, TUV, BV

Place of Origin : Foshan, China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100 Sets per month

Delivery Time : 15working days

Packaging Details : Standard export packing

Product Name : 15KVA-100KVA Silent Generator

Color : Customerized

Frequency : 50Hz / 60Hz

Speed : 1500RPM / 1800RPM

Cooling Type : Water cooled

Engine brand : Cummins / Perkins / Chinese

Alternator brand : Stamford / Stamford copy

Control Panel : Optional

Contact Now

15-100KVA Silent Diesel Generator Soundproof 3 Phase 50Hz / 60Hz Standby Generator

Genset Data: 400/230V, 50Hz/60Hz , 3 Phase 4 Pole, 1500RPM/1800RPM , Power Factor 0.8.

Product Description: (For Example)

1. Prime power 25KVA, standby power 28KVA.
2. Powered by Cummins engine.
3. Original Stamford alternator.
4. Delixi air breaker.
5. Electric start with batteries.
6. Base integrated fuel tank.
7. Smartgen controller.

8. ATS is for option.

Technical Specifications:

Genset model	SCS25
Genset rated power	20KW/25KVA
Rated voltage	400/230V (adjustable)
Rated current	36 Amp
Frequency	50 Hz
Power factor	0.8 Lagging
Connecting type	3 phase 4 wire
Cooling system	Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm	2250×1000×1400
Gross weight (kg)	1100
Diesel Engine
Brand	DCEC CUMMINS
Model	4B3.9-G2
Engine structure	4 cylinders vertical in line, 4 stroke
Rotating speed	1500 RPM
Engine cooling method	Water-cooled
Speed governing system	Electronic speed governor
Starting method	By 24V batteries
Engine filter system	Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L)	3.9
Bore×Stroke(mm)	102×120
Compression ratio	16.5: 1
100% Load fuel consumption (litre/h)	≤5.4
Lube capacity(L)	11
Alternator
Brand	STAMFORD
Model	PI144E
Excite type	Brushless self-excited AVR regulation
Connecting type	3 phase 4 pole
Steady frequency change	0.50%
No load voltage	≥95%-105%
Steady voltage	≤±1%
Insulation class	Class H
Protection grade	IP23

OEM Service:

Unique design and manufacture of generator according to customers requirement.
Customer logo printing or painting on the genset.
Installation and Operation manual neutral or headings can be design according to customer requirement.
Full warranty cover to support the customers.

Guarantee For SHX Series Generators:

Guarantee Period: One year or 1000hours whichever comes first.
During the guarantee period, the spare-parts will be sent through your shipping agency in China.
Spare-parts can also be sent thought FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
24 hours service hotline is available for customers.

Invitation to visit our factory

If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China.
Our factory locates in Foshan City, which is famous for its ceramics, is just 45 minutes away from Guangzhou, and 35 minutes away from Canton fair.
When you come to Guangzhou or Canton fair, we can send cars to pick you up and take you to our factory.
In the factory we can discuss more about the cooperation and we will listen to your requirements.

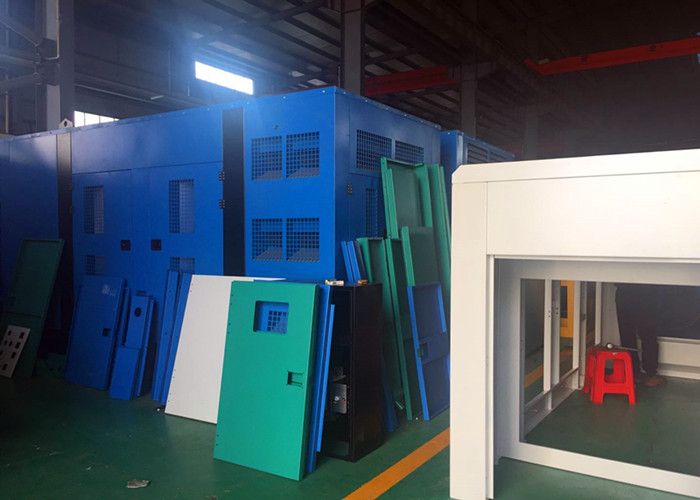

More Pictures Show:
